Reverse Engineering
Through our reverse engineering services, we add value to your production and development processes by generating complete, high-precision 3D CAD data from physical parts. Using state of the art 3D optical scanning devices, we capture data quickly and accurately, ensuring the success of your process validation, optimization, and quality control processes.
Our Reverse Engineering Service Scope
- 3D Modeling of Products Without Data: Creating precise, production ready CAD models from scratch by scanning existing parts for which no technical drawings or CAD data are available using 3D optical scanning.
- Springback/Die Compensation Studies: Scanning parts to identify post production deformations, accurately determining springback and die compensation surfaces, and transferring this data to the CAD environment.
- Process Improvement and Validation: Scanning parts currently in production to identify die and process defects; conducting process improvement studies aimed at increasing manufacturing efficiency.

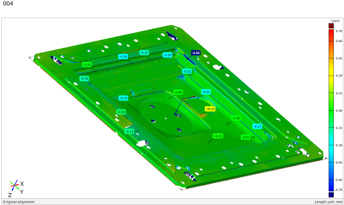

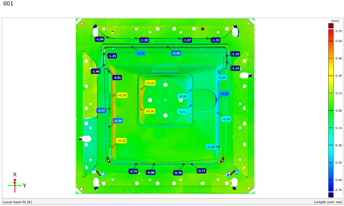

- Comparison of Original Data and Product: Precisely comparing the 3D scan data of the final produced part with the original CAD data (deformation and tolerance analysis) using color maps.
TKare Engineering; provides high-precision sheet metal die design, simulation, and engineering solutions for the automotive, aerospace, defense, and home appliance industries.
